AutoTasks

Updated June 02, 2022 20:57

AutoTasks are powerful tools that can fundamentally alter your site's assets, metadata, or even folder structure. With such great power comes great responsibility. AutoTasks must therefore be carefully defined, tested, and documented to avoid any unintended effects or confusion. For this reason, it is highly recommended you test any AutoTask configuration with a UAT site before enabling it on a production site.

Additionally, as with any tool, you must make sure it is the right one for the job. An AutoTask may not be necessary, as there may be simpler ways to implement many workflows. Your account manager is an invaluable resource as you write and troubleshoot your AutoTasks and can also help determine whether or not a proposed task is the correct solution for the intended job.

AutoTasks are powerful workflow tools used to automatically perform actions on NetX assets or data based on certain triggers. Some common uses of AutoTasks include:

Organize assets based on an attribute change.
Generate a watermarked version of an asset, to be attached as a view to the original asset.
Notify specific users when certain actions are performed.

What is an AutoTask?

Under the hood, AutoTasks are written in XML, a text-based format for representing structured data. It's helpful to have some basic familiarity with XML syntax before building AutoTasks. If you'd like to brush up on XML basics, head over to https://www.w3schools.com/xml/default.asp

Terminology

Parent element: The parent of an individual AutoTask contains the entirety of the task itself. The parent element of every AutoTask is always <task>.
Child element: Child elements of an AutoTask contain any components of a task such as its matchCriteria triggers.
Subchild element: The subchild element is a component inside a child element. Note that repurpose components do not have any supported subchild elements.
Component: AutoTasks are composed of the following components: matchCriteria, modifications, repurpose, export, and notification. Only matchCriteria and one other component are required for any given AutoTask, though all components can be included in any given AutoTask.
Parameter: Every supported component has unique parameters with values based on the component type. For example, one parameter for the repurpose component consists of the name of a repurpose operation followed by a relevant value, e.g. <repurpose format="jpg" />.
Value: Each parameter has a value that contains data related to it. These values are dependent on both the component and parameter being used, e.g. jpg for this repurpose component: <repurpose format="jpg" />.

Syntax

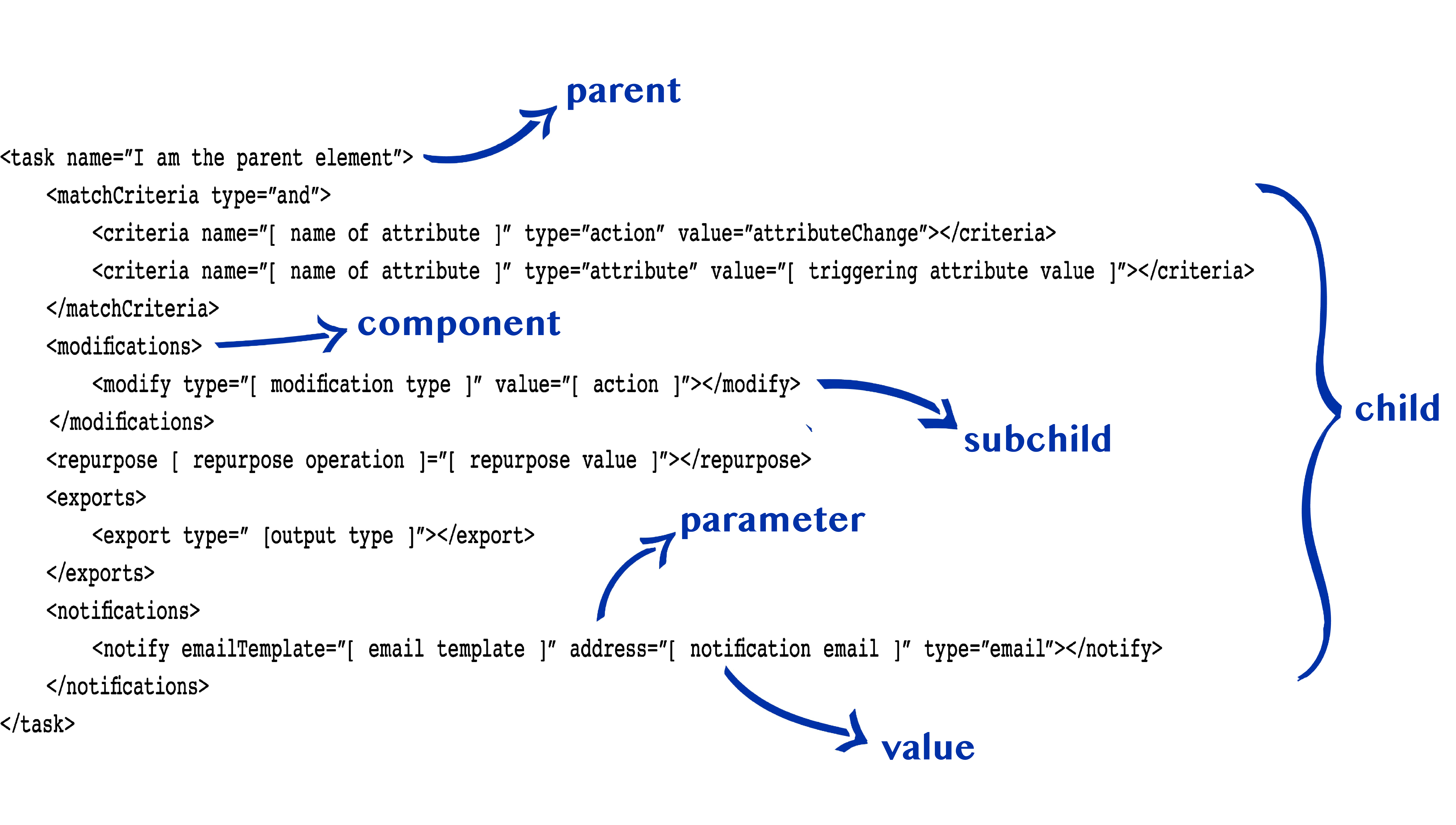

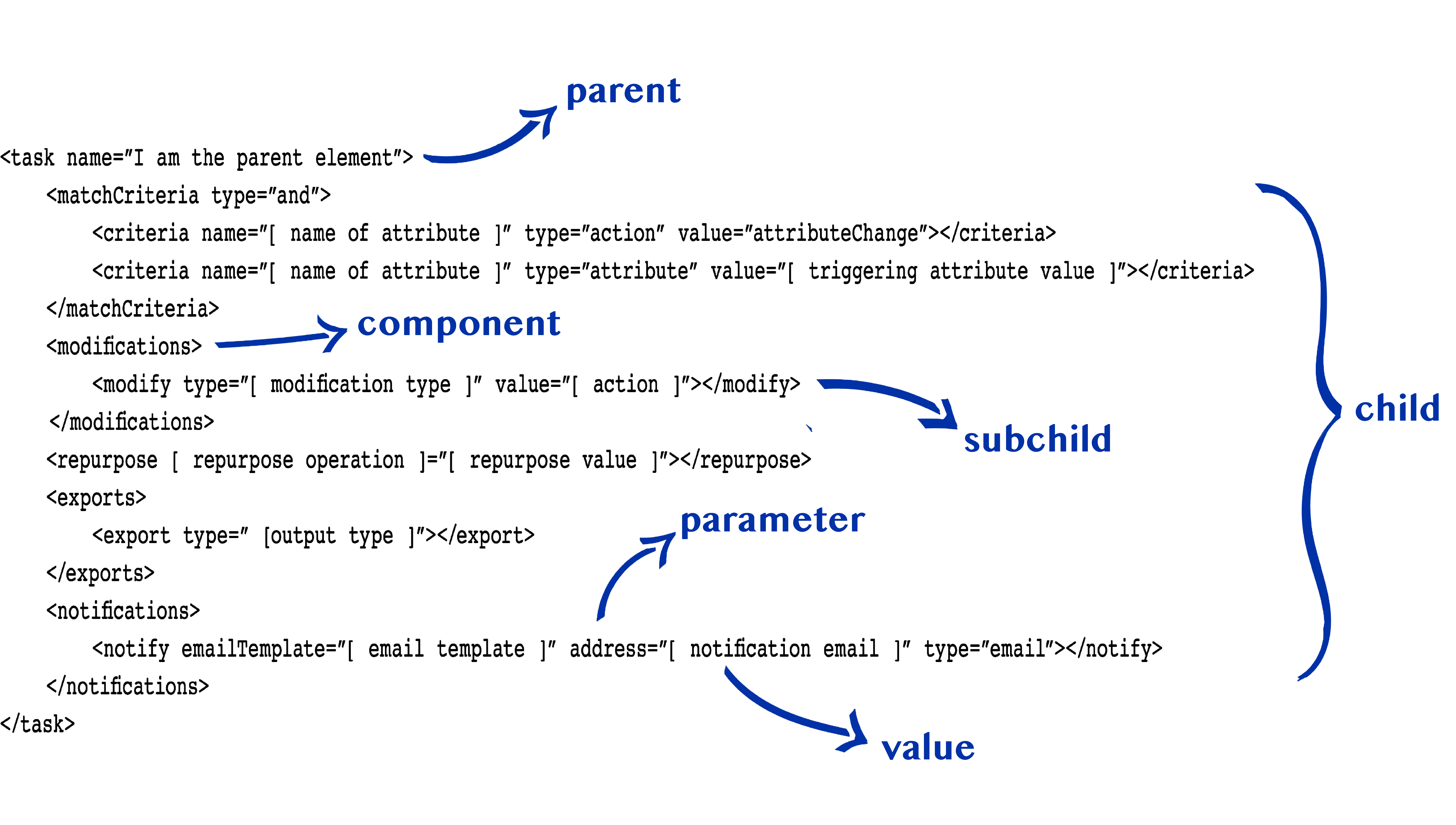

Below is a properly formatted AutoTask with placeholder values. Note that all elements are case-sensitive:

AutoTask components always trigger in the following order:

task
matchCriteria
modifications
repurpose
export
notification

Components

task

The task element contains your AutoTask actions and criteria; the opening task tag should contain a name field where you give the task a unique name.

matchCriteria

Every AutoTask must have an <matchCriteria> element that will trigger the task. Within <matchCriteria>, you can specify which NetX actions will trigger the AutoTask using the <criteria> subchild element. The type parameter controls how multiple <criteria> are combined:

type="or" - only one of the listed criteria must match
type="and" - all of the listed criteria must match

<matchCriteria type="and / or">
	<criteria [ criteria parameters ]></criteria>
</matchCriteria>

To learn more about matchCriteria, see AutoTask Match Criteria.

modifications

Modifications make changes to assets that meet the AutoTask's matchCriteria. They are used to:

Modify custom attributes.
Organize assets by folder.
Expire assets.
Delete assets.

Modifications can be built upon by adding <modify> ... </modify> subchild brackets in between <modifications> ... </modifications> child brackets:

<modifications>
	<modify [ modify parameters ]></modify>
</modifications>

For more information regarding AutoTask modifications, see AutoTask Modifications.

repurpose

Repurposing assets via AutoTask uses repurpose operations as parameters to automatically create a derivative file for an asset that meets the task's match criteria; these files are attached as a view to the original asset. Repurpose operations can be built upon by formatting repurpose operation parameters between a <repurpose /> bracket. Note that operations are contained inside a single bracket, with no nested subchild brackets. A / is still required before the closing bracket after any repurpose operations.

<repurpose [ repurpose parameters ]/>

For more information regarding repurposing assets via AutoTask and the formatting of repurpose parameters, see AutoTask Repurpose. For more information regarding each repurpose operation, see Repurpose Operations.

exports

Adding an export action to an AutoTask can:

Send assets or their derivatives to an alternate storage location.
Send assets or their derivatives to a specified email address.
Generate a new asset or asset view.

Export actions can be built upon by adding <export> ... </export> subchild brackets in between <exports> ... </exports> child brackets. Multiple export actions are supported with a single AutoTask.

<exports>
	<export [ export parameters ]></export>
<exports/>

notifications

Notifications are used to send an email to a specified user, group, or email address when an AutoTask is triggered. They can be built upon by adding a <notify /> subchild bracket in between <notifications> ... </notifications> child brackets. Note that a / is still required before the final notify bracket.

<notifications>
	<notify [ notifications parameters ]/>
</notifications>

System attributes

Custom attributes can be updated with an AutoTask, or used as an AutoTask trigger. While the following system attributes can be used with an AutoTask, only name and visible are editable via AutoTask; all other system attributes can be used as triggers.

Attribute	Description
creationDate	The creation date of an asset. This date field should be formatted as yyyy-mm-dd. To check the creation date of a particular asset, view its detail page. Editable? No
fileFormatFamily	Includes: 3d, audio, animation, cameraRAW, compression, data, disc, document, font, image, layout, presentation, spreadsheet, vector, video, markup Editable? No
fileHeight	The height of the asset, in pixels. If an asset is a file type that does not have dimensions, e.g. an audio file, this attribute will not apply. To view the dimensions of an asset including its file height, check its detail page. Editable? No
fileName	The filename of an asset. Note that this is the name of the original file, not the asset name as it appears in NetX. To view an asset's file name, check its detail page. Editable? No
fileSize	The size of the asset, in bytes. To view an asset's file size, check its detail page. Editable? No
fileType	The file type of an asset, e.g. jpg, mp4, etc. To view an asset's file type, check its detail page. Editable? No
fileWidth	The height of the asset, in pixels. If an asset is a file type that does not have dimensions, e.g. an audio file, this attribute will not apply. To view the dimensions of an asset including its file height, check its detail page. Editable? No
modificationDate	The date of the last modification to an asset. To view its modification date, check its detail page. Editable? No
name	An asset's name. Note that this is the name of the asset in NetX, not the name of the underlying file. You can find the name of the asset via its detail page. Editable? Yes
visible	An asset's name. Note that this is the name of the asset in NetX, not the name of the underlying file. You can find the name of the asset via its detail page. Editable? Yes
assetId	An asset's unique ID assigned during upload. You can find an asset's ID number via its detail page. Editable? No

Creating and editing AutoTasks

Autotask editor

NetX offers a built-in code editor for creating and editing AutoTasks. See AutoTask Editor for more information.

autotask.xml file

On-premise administrators can add and edit AutoTasks by directly editing the autotask.xml file. The default location of this file is here:

Windows: C:\Program Files\NetXposure\netx\config\autotask.xml
Linux: /opt/netx/netx/config/autotask.xml

Tips for editing autotask.xml:

Each AutoTask must still be formatted using proper XML, enclosed by <task> ... </task> brackets, in between the overarching <autoTask> ... </autoTask> brackets in the file.
Each component of the AutoTask must be properly formatted using its accepted parameters; to properly format each element of your AutoTask, see the component rundown above. If your AutoTask is not triggering or behaving as expected, make sure all of your task's XML is properly formatted and all parameters conform to NetX's AutoTask commands.
Every change to a site's autotask.xml file requires a restart of NetX. This includes adding new AutoTasks as well as deleting, or modifying existing tasks.
Adding, modifying, or removing AutoTasks using the autotask.xml file directly will reflect in NetX's AutoTask tab of the Systems area.

Autotask processing

Once triggered, AutoTasks are added to a queue, then completed in order. This means if many AutoTasks are triggered during a short period of time, there may be a delay before a new AutoTask is completed.
